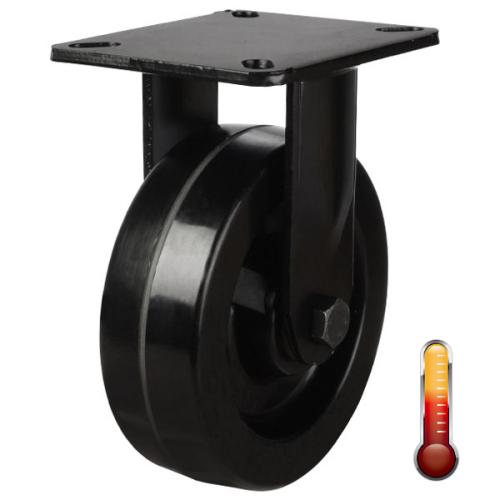

200mm Phenolic Fixed Castor [500kg max load]
Code: 200LMHB8WAN120
Technical Information
| Load Capacity (kg) | 500kg |
| Load Capacity Per 4-Set (kg) | 1500kg |
| Overall Height | 241mm |
| Wheel Diameter | 200mm |
| Tread Width | 50mm |
| Castor Type | Fixed |
| Fitting Method | Plate |
| Hole Size | 11mm |
| Plate Size | 135mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Bearing Type | Roller |
| Bracket Material | Fabricated |
| Wheel Material | Phenolic |
| Wheel Colour | Black |
