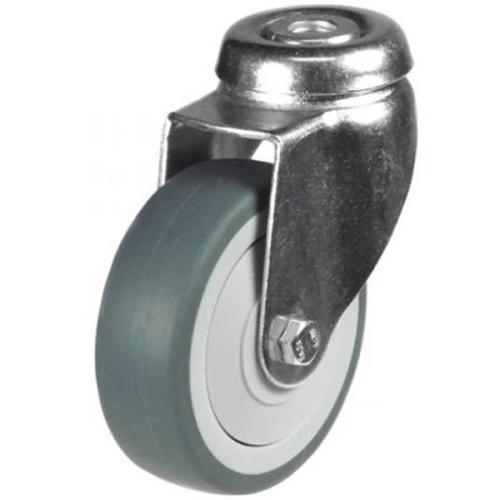

100mm Non-Marking Rubber Swivel Bolt Hole Castor [80kg max load]

100mm Non-Marking Rubber Swivel Bolt Hole Castor [80kg max load]

Code: 100GDBH10GRG

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 80kg
Load Capacity Per 4-Set (kg) 240kg
Overall Height 121mm
Wheel Diameter 100mm
Tread Width 24mm
Fitting Method M10 Bolt Hole
Bolt Hole 10mm
Bearing Type Plain
Offset 35mm
Bracket Material Pressed Steel
Wheel Material Non-Marking Rubber on Plastic
Wheel Colour Grey

The lower capacity model of the LWATPR-capped series with a ball bearing option can be used for light applications up to a load capacity of 240kg per set. Suitable for use indoors thanks to its non-marking grey rubber wheel these castors would be suitable for use within the public domain including schools, retail, and hospitality. The in-built 'cap' seen on the wheel helps to prevent debris from entering the bearing, ensuring smooth maneuverability whilst in use.
