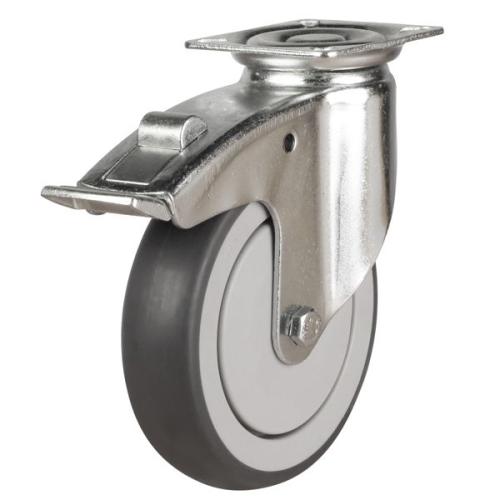

100mm Non-Marking Rubber Swivel Braked Castor [90kg max load]
Code: 100LWA4TPRBJGSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 90kg |
| Load Capacity Per 4-Set (kg) | 270kg |
| Overall Height | 135mm |
| Wheel Diameter | 100mm |
| Tread Width | 32mm |
| Castor Type | Swivel Braked |
| Fitting Method | Plate |
| Hole Size | 8.5mm |
| Plate Size | 67mm x 77mm |
| Bearing Type | Ball |
| Offset | 38mm |
| Bracket Material | Pressed Steel |
| Wheel Material | Synthetic Non-Marking Rubber on Plastic |
| Wheel Colour | Grey |
The capped version of the LWATPR series with a ball bearing option can be used for medium-capacity applications up to a load capacity of 390kg per set. Suitable for use indoors thanks to its non-marking grey rubber wheel these castors would be suitable for use within the public domain including schools, retail and hospitality. The in-built 'cap' seen on the wheel helps to prevent debris entering the bearing, ensuring smooth maneuverability whilst in use.
