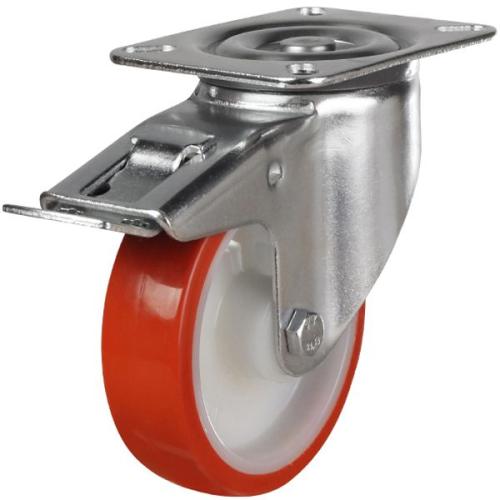

100mm Polyurethane Swivel Braked Castor [150kg max load]
Code: 100DR4PNOSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 150kg |
| Load Capacity Per 4-Set (kg) | 450kg |
| Overall Height | 128mm |
| Wheel Diameter | 100mm |
| Tread Width | 30mm |
| Castor Type | Swivel Braked |
| Fitting Method | Plate |
| Plate Size | 105mm x 85mm |
| Hole Centres | 80mm x 60mm |
| Hole Size | 9mm |
| Bearing Type | Plain |
| Offset | 40mm |
| Bracket Material | Pressed Steel |
| Wheel Material | Polyurethane on Nylon |
| Wheel Colour | Red |
