![100mm Rubber Fixed Castor [180kg max load]](/thumbnail/500x500/userfiles/images/sys/products/100mm_Rubber_Fixed_Castor_180kg_max_load_88488jpeg.jpg)

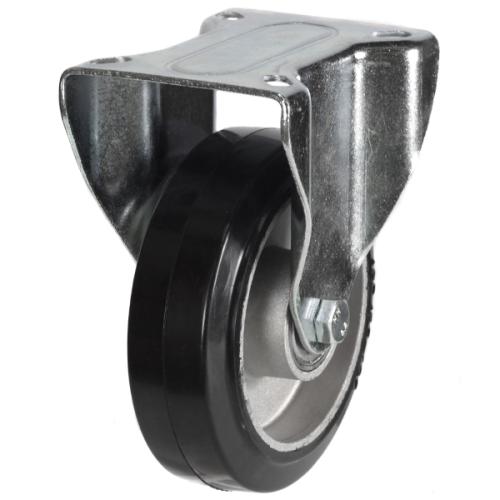

100mm Rubber Fixed Castor [180kg max load]
Code: 100DRH8EABJ
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 180kg |
| Load Capacity Per 4-Set (kg) | 540kg |
| Overall Height | 128mm |
| Wheel Diameter | 100mm |
| Tread Width | 40mm |
| Castor Type | Fixed |
| Fitting Method | Plate |
| Plate Size | 105mm x 85mm |
| Hole Centres | 80mm x 60mm |
| Bearing Type | Ball |
| Bracket Material | Heavy Pressed Steel |
| Wheel Material | Elastic Rubber on Aluminium |
