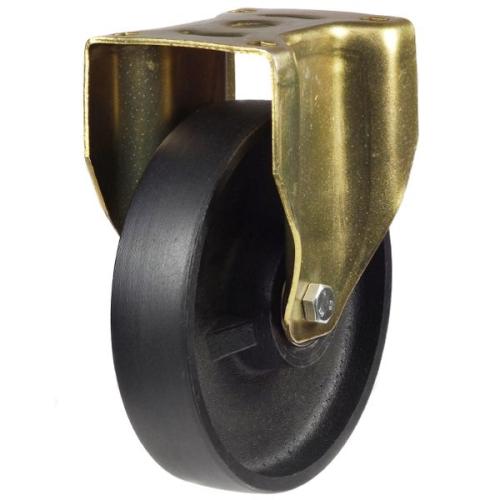

125mm Cast Iron Fixed Castor [650kg max load]

125mm Cast Iron Fixed Castor [650kg max load]

Code: 125GDH8CIBJ

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 650kg
Load Capacity Per 4-Set (kg) 1950kg
Overall Height 166mm
Wheel Diameter 125mm
Tread Width 40mm
Castor Type Fixed
Fitting Method Plate
Hole Size 12mm
Plate Size 135mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Bracket Material Heavy Pressed Steel
Wheel Material Cast Iron
Wheel Colour Black
