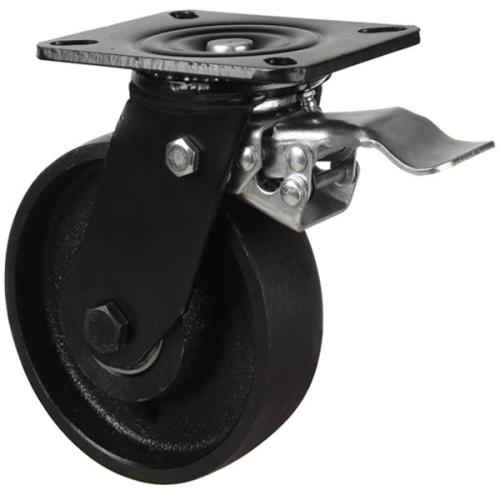

125mm Cast Iron Swivel Braked Castor [500kg max load]
Code: 125LMHB4CIBJSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 500kg |
| Load Capacity Per 4-Set (kg) | 1500kg |
| Overall Height | 165mm |
| Wheel Diameter | 125mm |
| Tread Width | 40mm |
| Castor Type | Swivel Braked |
| Fitting Method | Plate |
| Hole Size | 11mm |
| Plate Size | 135mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Bearing Type | Ball |
| Offset | 40mm |
| Bracket Material | Fabricated |
| Wheel Material | Cast Iron |
| Wheel Colour | Black |
