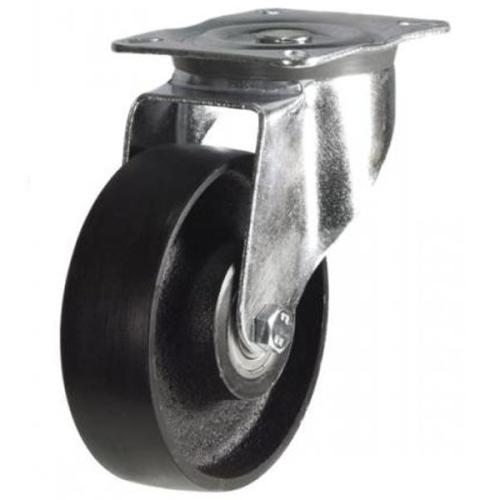

125mm Cast Iron Swivel Castor [270kg max load]

125mm Cast Iron Swivel Castor [270kg max load]

Code: 125DR4CIBJ

Wheel Diameter Options (Please select from below):

Technical Information

Type Industrial Castor
Load Capacity (kg) 270kg
Load Capacity Per 4-Set (kg) 810kg
Overall Height 152mm
Wheel Diameter 125mm
Tread Width 35mm
Castor Type Swivel
Fitting Method Plate
Hole Size 9mm
Plate Size 105mm x 85mm
Hole Centres 80mm x 60mm
Bearing Type Ball
Offset 47mm
Bracket Material Pressed Steel
Wheel Material Cast Iron
Wheel Colour Black
