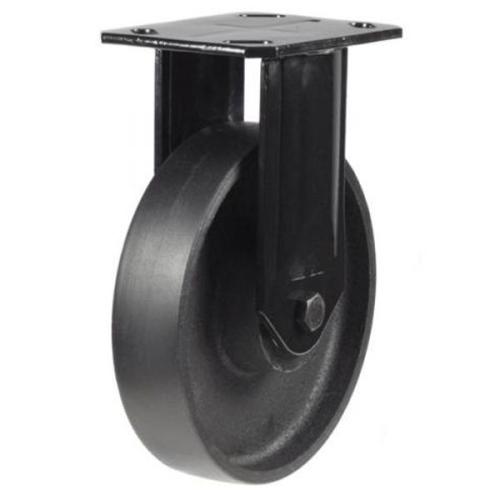

150mm Cast Iron Fixed Castor [900kg max load]

150mm Cast Iron Fixed Castor [900kg max load]

Code: 150NGR8CIBJ

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 900kg
Load Capacity Per 4-Set (kg) 2700kg
Overall Height 202mm
Wheel Diameter 150mm
Tread Width 45mm
Castor Type Fixed
Fitting Method Plate
Hole Size 13mm
Plate Size 149mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Bracket Material Fabricated
Wheel Material Cast Iron
Wheel Colour Black
