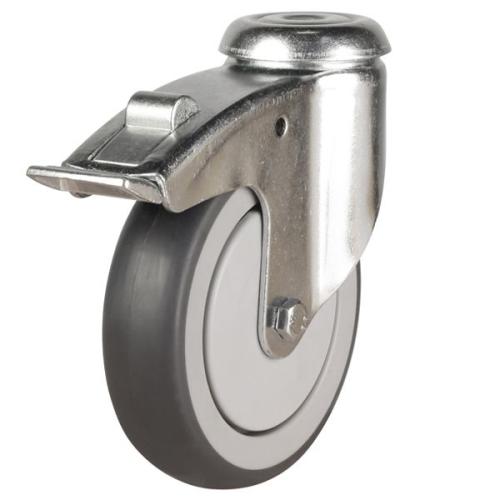

150mm Non-Marking Rubber Swivel Braked Bolt Hole Castor [130kg max load]

150mm Non-Marking Rubber Swivel Braked Bolt Hole Castor [130kg max load]

Code: 150LWABH12TPRBJGSWB

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 130kg
Load Capacity Per 4-Set (kg) 390kg
Overall Height 184.5mm
Wheel Diameter 150mm
Tread Width 32mm
Castor Type Swivel Braked
Fitting Method M12 Bolt Hole
Bearing Type Ball
Offset 45mm
Bracket Material Pressed Steel
Wheel Material Synthetic Non-Marking Rubber on Plastic
Wheel Colour Grey

The capped version of the LWATPR series with a ball bearing option can be used for medium-capacity applications up to a load capacity of 390kg per set. Suitable for use indoors thanks to its non-marking grey rubber wheel these castors would be suitable for use within the public domain including schools, retail and hospitality. The in-built 'cap' seen on the wheel helps to prevent debris entering the bearing, ensuring smooth maneuverability whilst in use.
