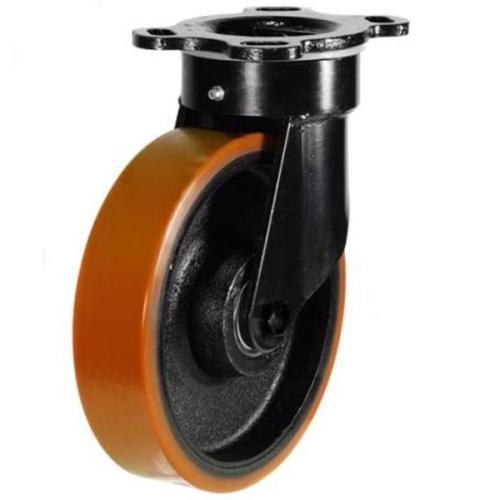

150mm Polyurethane on Cast Iron Swivel Castor [800kg max load]

150mm Polyurethane on Cast Iron Swivel Castor [800kg max load]

Code: 150NGR4PTBJ

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 800kg
Load Capacity Per 4-Set (kg) 2400kg
Overall Height 202mm
Wheel Diameter 150mm
Tread Width 50mm
Castor Type Swivel
Fitting Method Plate
Hole Size 13mm
Plate Size 149mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 49mm
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Orange
