Categories › Light/Medium Duty Castors › Elastic Rubber on Cast Iron Castors [DRRT] › DRRT Braked Castors › 150mm Rubber on Cast Iron Swivel Braked Castor [350kg max load]

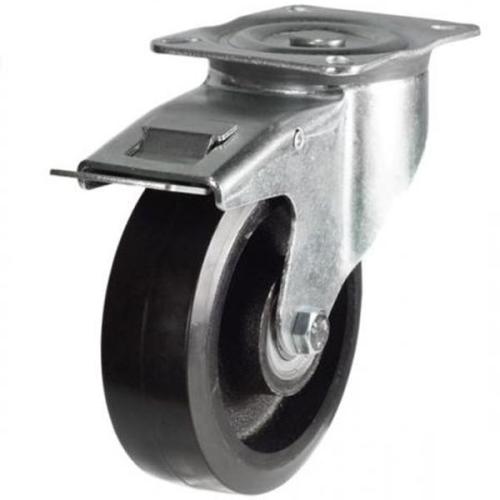

150mm Rubber on Cast Iron Swivel Braked Castor [350kg max load]

150mm Rubber on Cast Iron Swivel Braked Castor [350kg max load]

Code: 150DR4RTBJSWB

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 350kg
Load Capacity Per 4-Set (kg) 1050kg
Overall Height 185mm
Wheel Diameter 150mm
Tread Width 50mm
Castor Type Swivel Braked
Fitting Method Plate
Hole Size 11mm
Plate Size 135mm x 105mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 65mm
Bracket Material Pressed Steel
Wheel Material Elastic Rubber on Cast Iron
Wheel Colour Black
