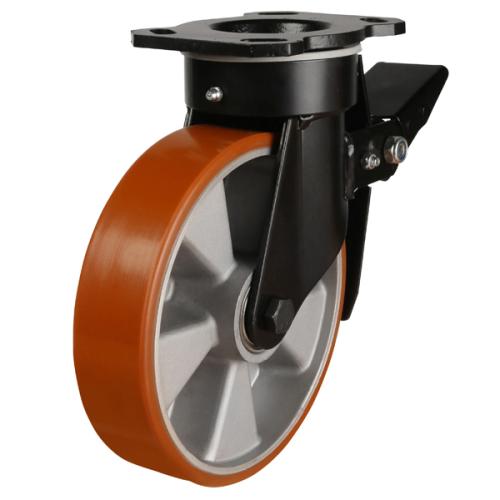

160mm Polyurethane Swivel Braked Castor [600kg max load]
Code: 160NGR4PTABJSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 600kg |
| Load Capacity Per 4-Set (kg) | 1800kg |
| Overall Height | 207mm |
| Wheel Diameter | 160mm |
| Tread Width | 50mm |
| Castor Type | Swivel Braked |
| Fitting Method | Plate |
| Hole Size | 13mm |
| Plate Size | 149mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Bearing Type | Ball |
| Offset | 49mm |
| Bracket Material | Fabricated |
| Wheel Material | Polyurethane on Aluminium |
| Wheel Colour | Orange |
