![200mm Nylon Swivel Braked Castor [800kg max load]](/thumbnail/500x500/userfiles/images/sys/products/200mm_Heavy_Duty_Nylon_Braked_castors__800kg_capacity_49460jpeg.jpg)

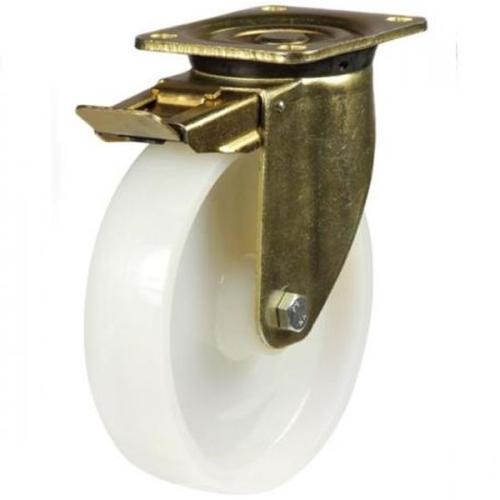

200mm Nylon Swivel Braked Castor [800kg max load]
Code: 200GDH4NYBJSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Type | Industrial Castor |
| Load Capacity (kg) | 800kg |
| Load Capacity Per 4-Set (kg) | 2400kg |
| Overall Height | 239mm |
| Wheel Diameter | 200mm |
| Tread Width | 50mm |
| Castor Type | Swivel Braked |
| Fitting Method | Plate |
| Hole Size | 12mm |
| Plate Size | 135mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Bearing Type | Ball |
| Offset | 55mm |
| Bracket Material | Pressed Steel |
| Wheel Material | Nylon |
| Wheel Colour | White |
