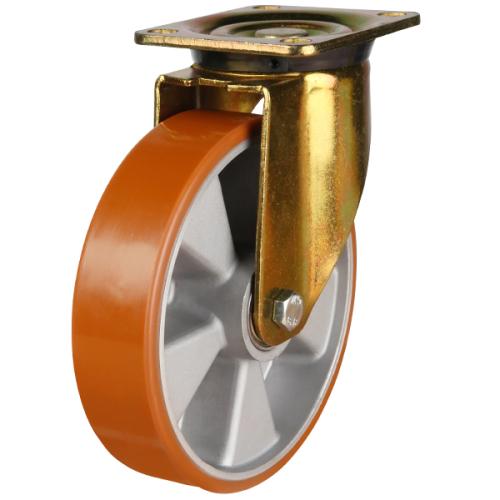

200mm Polyurethane Swivel Castor [800kg max load]
Code: 200GDH4PTABJ
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 800kg |
| Load Capacity Per 4-Set (kg) | 2400kg |
| Overall Height | 239mm |
| Wheel Diameter | 200mm |
| Tread Width | 50mm |
| Castor Type | Swivel |
| Fitting Method | Plate |
| Hole Size | 12mm |
| Plate Size | 135mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Bearing Type | Ball |
| Offset | 55mm |
| Bracket Material | Heavy Pressed Steel |
| Wheel Material | Polyurethane on Aluminium |
| Wheel Colour | Orange |
