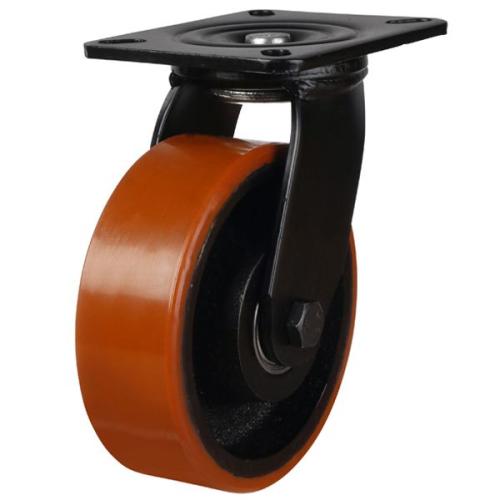

200mm Polyurethane on Cast Iron Swivel Castor [500kg max load]


Code: 200LMHB4PTBJ


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 500kg
Load Capacity Per 4-Set (kg) 1500kg
Overall Height 241mm
Wheel Diameter 200mm
Tread Width 50mm
Castor Type Swivel
Fitting Method Plate
Hole Size 11mm
Plate Size 135mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 54mm
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Orange
