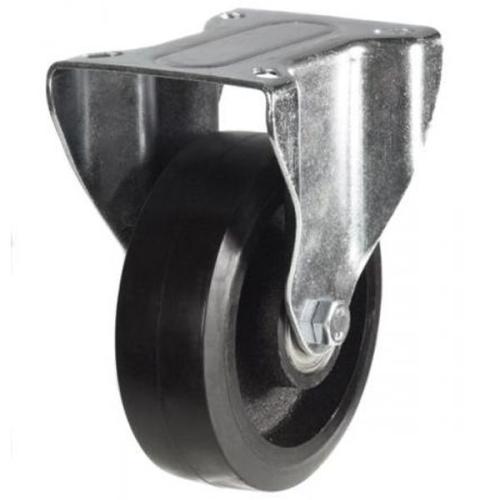

200mm Rubber on Cast Iron Fixed Castor [350kg max load]

200mm Rubber on Cast Iron Fixed Castor [350kg max load]

Code: 200DR8RTBJ

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 350kg
Load Capacity Per 4-Set (kg) 1050kg
Overall Height 237mm
Wheel Diameter 200mm
Tread Width 50mm
Castor Type Fixed
Fitting Method Plate
Hole Size 11mm
Plate Size 135mm x 105mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Bracket Material Pressed Steel
Wheel Material Elastic Rubber on Cast Iron
Wheel Colour Black
