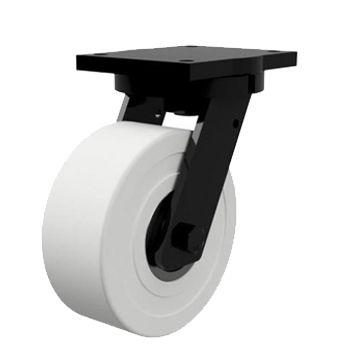

![250mm Cast Nylon Swivel Castor [2500kg max load]](/thumbnail/500x500/userfiles/images/sys/products/250mm_Extra_Heavy_Duty_Cast_Nylon_Swivel_Castors_40188jpeg.jpg)
250mm Cast Nylon Swivel Castor [2500kg max load]
Code: 250NXH4CNYBJ
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 2500kg |
| Load Capacity Per 4-Set (kg) | 7500kg |
| Overall Height | 315mm |
| Wheel Diameter | 250mm |
| Tread Width | 80mm |
| Fitting Method | Plate |
| Hole Size | 14mm |
| Plate Size | 175mm x 140mm |
| Hole Centres | 140mm x 105mm |
| Bearing Type | Ball |
| Offset | 80mm |
| Bracket Material | Fabricated |
| Wheel Material | Cast Nylon |
| Wheel Colour | White |
