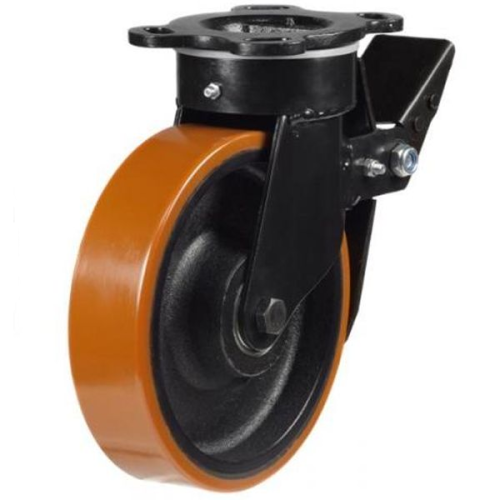

250mm Polyurethane on Cast Iron Swivel Braked Castor [1300kg max load]

250mm Polyurethane on Cast Iron Swivel Braked Castor [1300kg max load]

Code: 250NGR4PTBJSWB

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 1300kg
Load Capacity Per 4-Set (kg) 3900kg
Overall Height 303mm
Wheel Diameter 250mm
Tread Width 50mm
Castor Type Swivel Braked
Fitting Method Plate
Hole Size 13mm
Plate Size 149mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 70mm
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Orange
