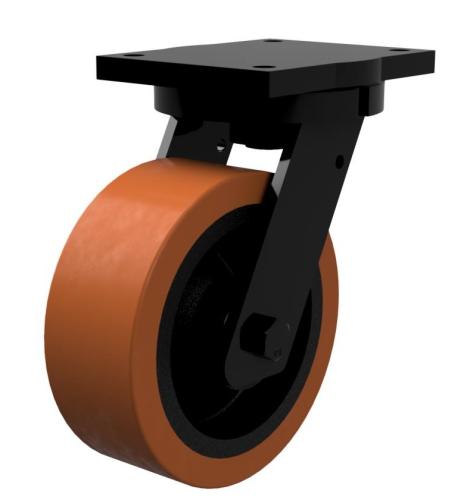

250mm Polyurethane on Cast Iron Swivel Castor [1800kg max load]

250mm Polyurethane on Cast Iron Swivel Castor [1800kg max load]

Code: 250NXH4PTBJ

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 1800kg
Load Capacity Per 4-Set (kg) 5400kg
Overall Height 315mm
Wheel Diameter 250mm
Tread Width 75mm
Fitting Method Plate
Hole Size 14mm
Plate Size 175mm x 140mm
Hole Centres 140mm x 105mm
Bearing Type Ball
Offset 80mm
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Orange
