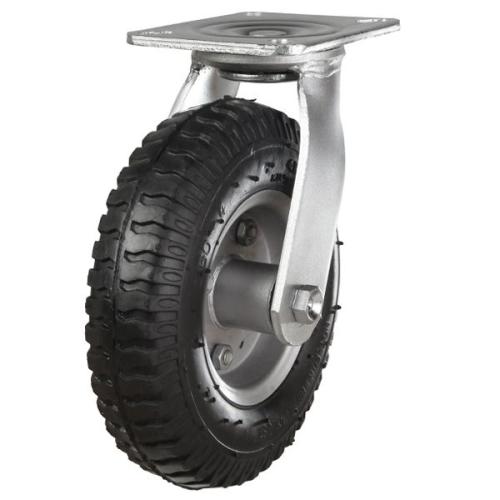

260mm Pneumatic on Steel Centre Swivel Castor [158kg max load]
Code: 260LMH4ATM
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 158kg |
| Load Capacity Per 4-Set (kg) | 474kg |
| Overall Height | 302mm |
| Wheel Diameter | 260mm |
| Tread Width | 83mm |
| Fitting Method | Plate |
| Hole Size | 13mm |
| Plate Size | 135mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Bearing Type | Ball |
| Offset | 58mm |
| Bracket Material | Fabricated |
| Wheel Material | Pneumatic Rubber |
| Wheel Colour | Black |
