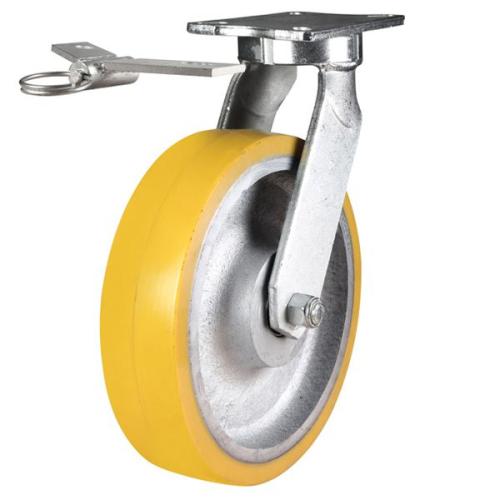

300mm Polyurethane on Cast Iron Swivel Castor [2500kg max load]

300mm Polyurethane on Cast Iron Swivel Castor [2500kg max load]

Code: 300DWH4PTBJDL

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 2500kg
Load Capacity Per 4-Set (kg) 7500kg
Overall Height 393mm
Wheel Diameter 300mm
Tread Width 75mm
Fitting Method Plate
Plate Size 184mm x 133mm
Hole Centres 156mm/133mm x 86mm/105mm
Hole Size 15mm x 14mm
Bearing Type Ball
Offset 110mm
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Yellow
