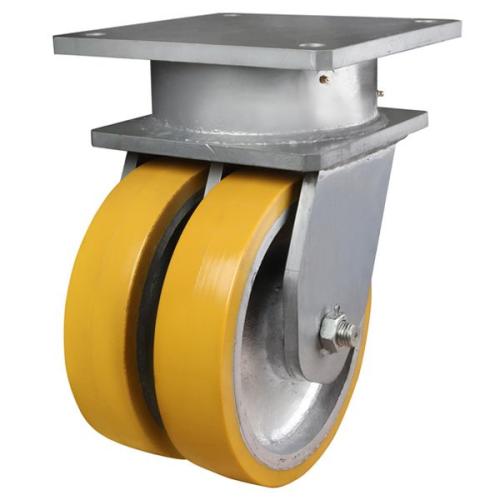

400mm Polyurethane on Cast Iron Swivel Castor [10000kg max load]
Code: 400DWDUH4PTTT
Wheel Diameter Options (Please select from below):
Technical Information
Load Capacity (kg) | 10000kg |
Load Capacity Per 4-Set (kg) | 30000kg |
Overall Height | 540mm |
Wheel Diameter | 400mm |
Castor Type | Swivel |
Fitting Method | Plate |
Hole Size | 25mm |
Plate Size | 320mm x 320mm |
Hole Centres | 254mm x 254mm |
Bearing Type | Ball |
Offset | 100mm |
Bracket Material | Fabricated |
Wheel Material | Polyurethane on Cast Iron |
Wheel Colour | Yellow |
