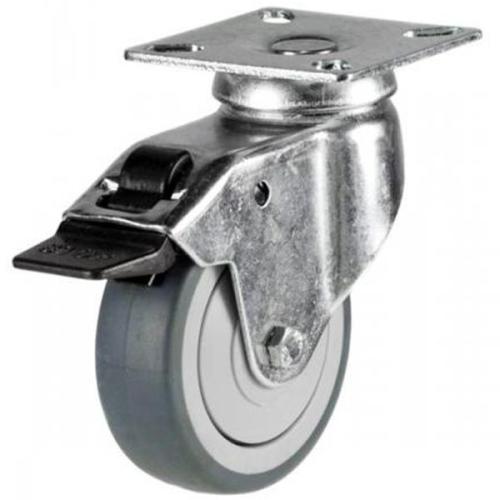

50mm Non-Marking Rubber Swivel Braked Castor [40kg max load]
Code: 50GD4GRGSWB
Wheel Diameter Options (Please select from below):
Technical Information
Load Capacity (kg) | 40kg |
Load Capacity Per 4-Set (kg) | 120kg |
Overall Height | 72mm |
Wheel Diameter | 50mm |
Tread Width | 17mm |
Castor Type | Swivel Braked |
Fitting Method | Plate |
Hole Size | 6.5mm |
Plate Size | 50mm x 50mm |
Hole Centres | 35mm x 35mm |
Bearing Type | Plain |
Offset | 35mm |
Bracket Material | Pressed Steel |
Wheel Material | Non-Marking Rubber on Plastic |
Wheel Colour | Grey |
The lower capacity model of the LWATPR-capped series with a ball bearing option can be used for light applications up to a load capacity of 240kg per set. Suitable for use indoors thanks to its non-marking grey rubber wheel these castors would be suitable for use within the public domain including schools, retail, and hospitality. The in-built 'cap' seen on the wheel helps to prevent debris from entering the bearing, ensuring smooth maneuverability whilst in use.
