Categories › Light Duty Castors › Synthetic Non-Marking Grey Rubber Castors [GDGRG] › GDGRG Swivel Castors › 50mm Non-Marking Rubber Swivel Castor [40kg max load]

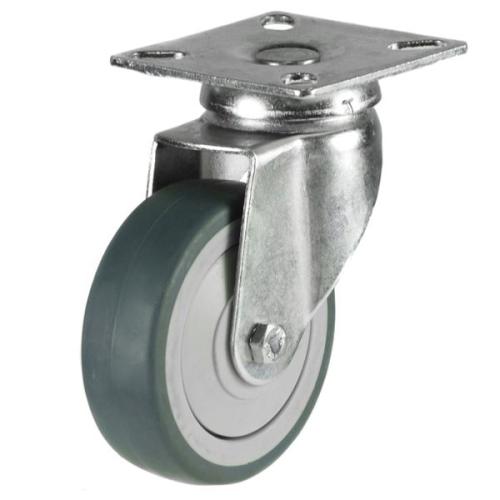

50mm Non-Marking Rubber Swivel Castor [40kg max load]

50mm Non-Marking Rubber Swivel Castor [40kg max load]

Code: 50GD4GRG

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 40kg
Load Capacity Per 4-Set (kg) 120kg
Overall Height 72mm
Wheel Diameter 50mm
Tread Width 17mm
Castor Type Swivel
Fitting Method Plate
Hole Size 6.5mm
Plate Size 50mm x 50mm
Hole Centres 35mm x 35mm
Bearing Type Plain
Offset 28mm
Bracket Material Pressed Steel
Wheel Material Non-Marking Rubber on Plastic
Wheel Colour Grey

The lower capacity model of the LWATPR-capped series with a ball bearing option can be used for light applications up to a load capacity of 240kg per set. Suitable for use indoors thanks to its non-marking grey rubber wheel these castors would be suitable for use within the public domain including schools, retail, and hospitality. The in-built 'cap' seen on the wheel helps to prevent debris from entering the bearing, ensuring smooth maneuverability whilst in use.
